Shirley XueAll work
ablefyCommunity 0→1Shipped2025–2026

Community access that starts from the product the seller already sells

Problem
ablefy sellers had the product, the buyers and the payment on one platform. A new community had to decide who gets in, and the first design answered that from the system's point of view: a paywall in settings, or private access with approval. Sellers who wanted the community as a bonus to an existing product could not find the setting at all.
Solution
Four versions, each changed by what sellers did in sessions and what the data showed. Access became reachable from the invite flow, then one setting reachable from both places, then its own page with fewer things on each screen. An assistant that set access for the seller was tested and dropped. When more than one product could be linked, access and invites became two separate flows.
Result
No friction found in later user tests or support cases. 68% of communities link at least one product; 36% of those set up a paywall. The version worth launching with was designed in three months, then a beta of 22 onboarding sessions before launch.

Role & team

Sole designer on the product

  • Strategic planning, user research, design system, product prioritisation, design iteration, prototyping with code.
  • Squad: one project lead, three engineers, one marketing.
  • Planned and ran the beta programme. Handed the product over in January 2026 to take on customer insights.

Duration & scope

June 2025 to January 2026

  • Vision in June, MVP tested with five sellers in July, the launch version with its own design system by September, open beta on 2 January.
  • Two research rounds: five sellers on the MVP prototype, then 22 onboarding sessions in four weeks before launch.
  • Part of a wider community research programme: 40+ interviews.

Key metrics

68% of communities link a product

  • No friction found in later user tests or support cases; every follow-up interviewee satisfied with the result.
  • 36% of linked communities set up a paywall: new revenue for ablefy.
  • 41% of invite-only communities saw the linked product's revenue rise, not all of it attributable to the community.
Context

At ablefy, a creator-commerce platform, sellers already had the hard parts in one place: a product, the people who had bought it, and the payments behind that. What they did not have was anywhere for those people to talk to each other.

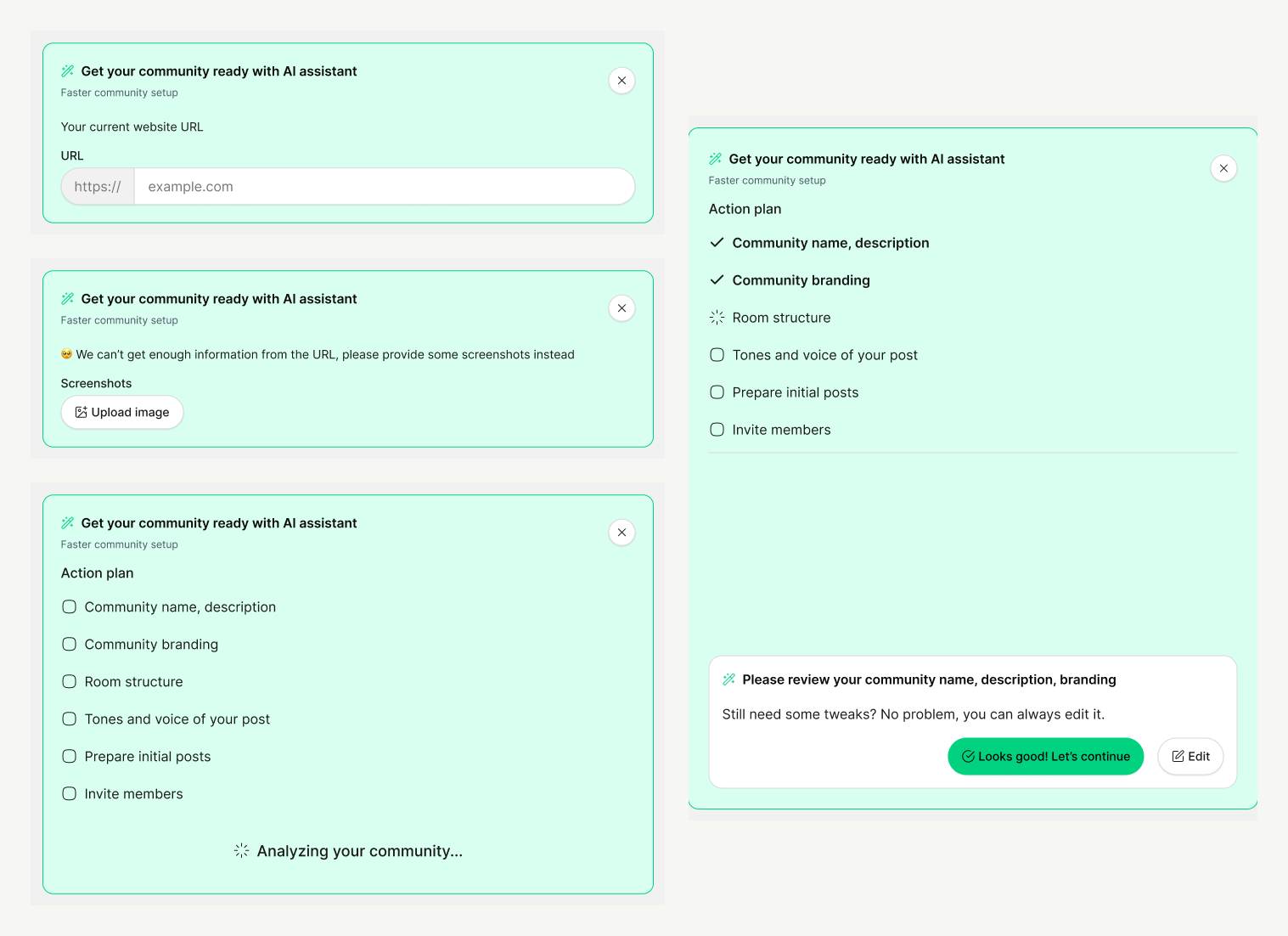

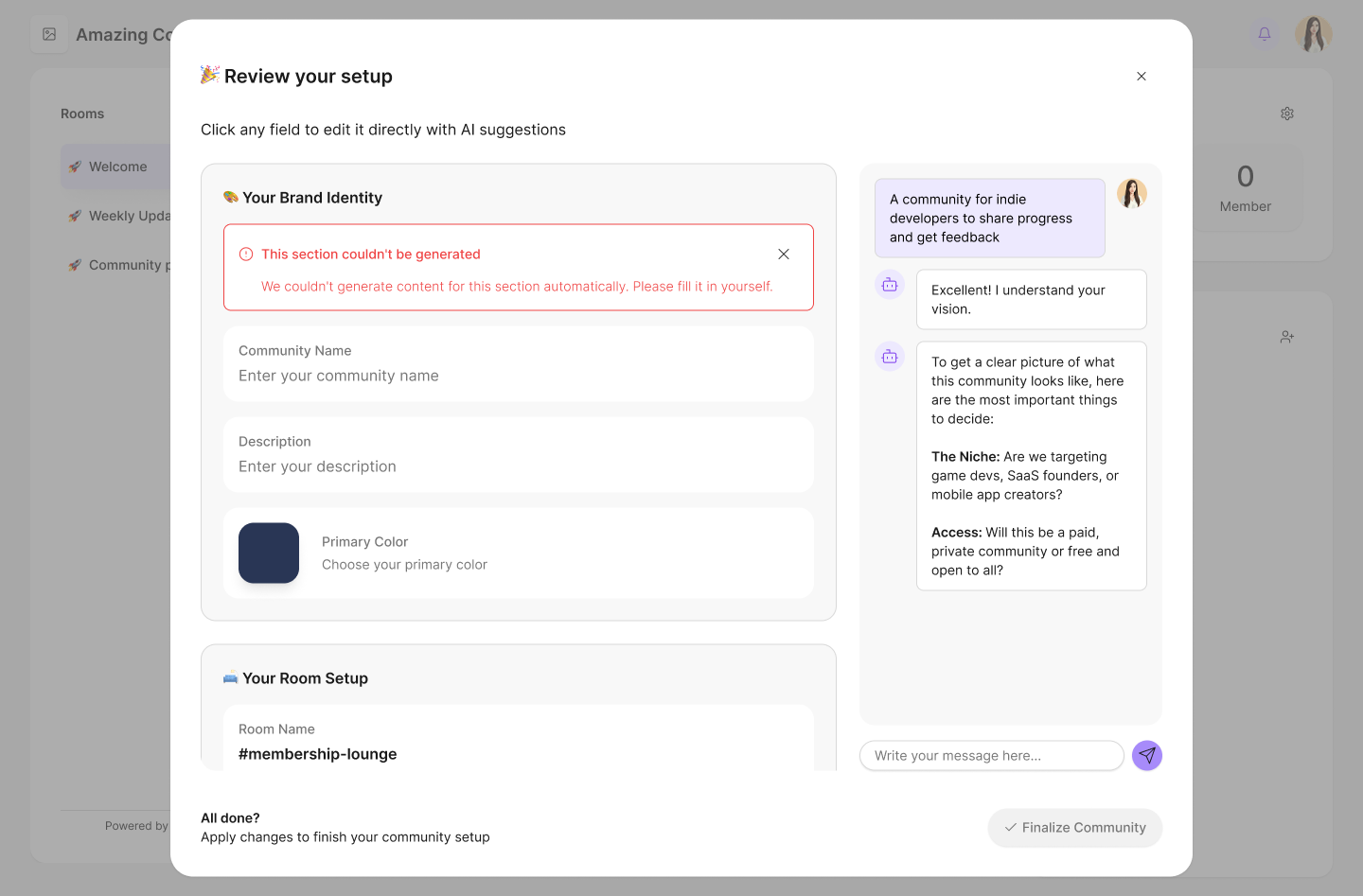

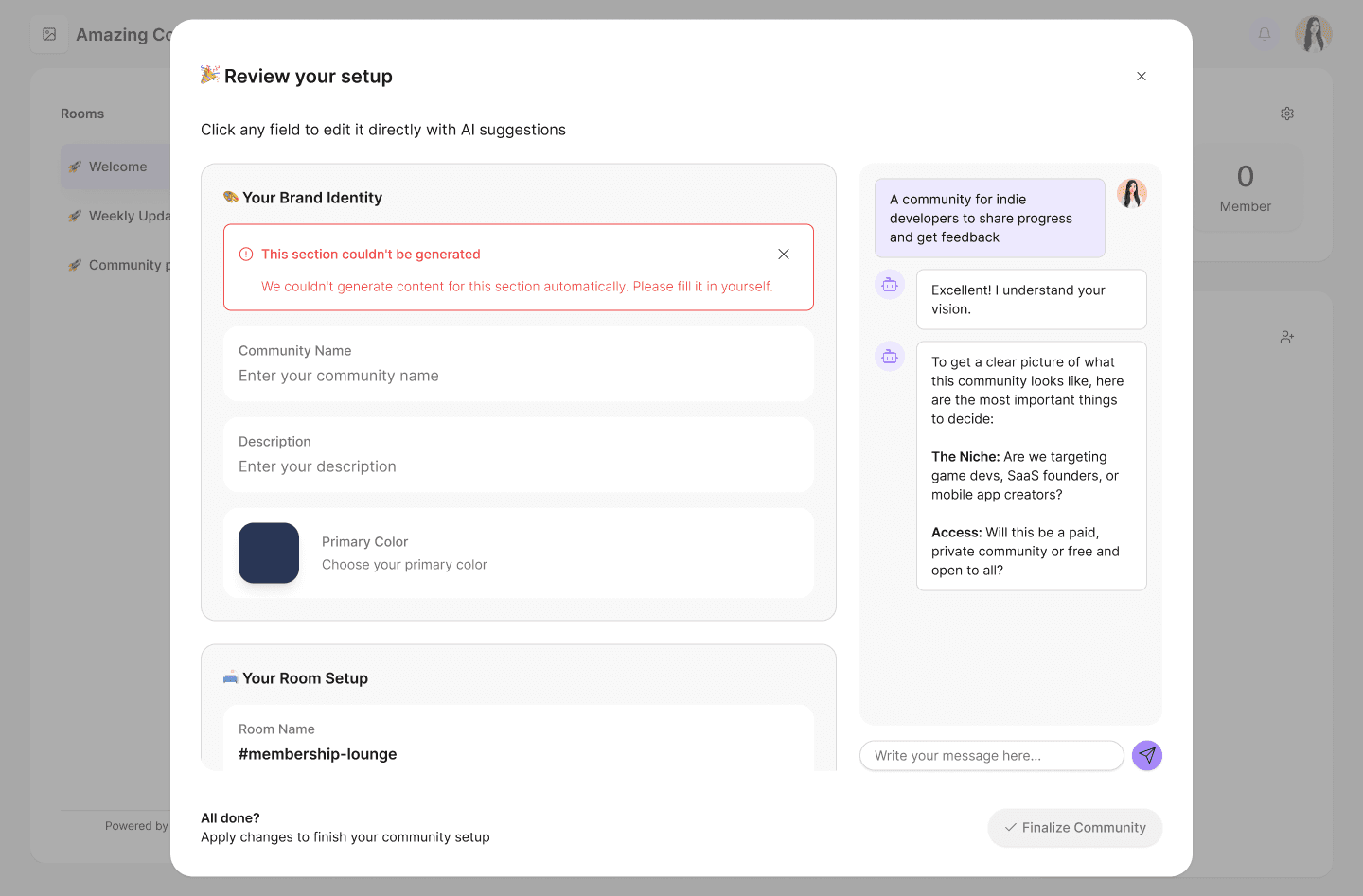

I was the only designer on the rebuild: a community product from scratch, on a new tech stack, in a new squad. Rooms, posts, members and a join page, under the seller's own name and colour, designed for the phone from the start and shipped as an installable web app. The product also gained an AI setup flow that drafts a community from the seller's product. This case stays on one decision, because it is the one that taught the most: access.

Today

As it ships: one choice, then one product

The answer first. A seller picks how people join: request to join, or pay to join with one of the seller's own ablefy products. Members come in through a separate page: by email, by link, or through an ablefy product, one step at a time. The rest of this case is how it got here.

Community access settings in the shipped product: request to join or pay to join, picking one of the seller's paid products, and the gated confirmationView full size
The access setting, shipped product on a demo community · request to join, or pay to join with one of the seller's own products
The shipped Add members page: the ablefy card chosen, the account linked, a product picked, the choice to add existing and future payers, and the linked product with its access linkView full size
Adding members, shipped product on a demo community · the ablefy card, a product picked, the choice to add existing and future payers, the linked product
First design

Two use cases, designed from the system

Two ways a seller would use a community. One: the community is the product. In settings, under access, the seller picks the ablefy product that is the paywall. Two: the seller adds the community to products they already sell. For them, private access with approval was the temporary answer.

The first design: community settings with a privacy setting of private, public or paid, paid chosen with a one-time price and access granted by connecting an ablefy productView full size
Design file · community as the product: paid, by connecting an ablefy product
The MVP invite modal over a members table: send email invites, or an invite link where anyone with the link needs the host's approval to joinView full size
Reconstructed from the design file · community inside a product the seller already sells: private, invite link, approval
First test

Sellers looked under Invite, not under Access

In the first user test, the second group could not find the setting. They were not thinking about access; they were thinking about inviting people. So access became reachable from the invite flow, where they looked.

The beta version: the invite modal with send email invites on top and set general community access underneathView full size
Reconstructed from the design file · the beta version: access reachable from the invite flow
Either, or

One product per community, reachable from both places

A technical constraint at the time: only one ablefy product could control access to a community. So each community served one use, either/or, and the same setting was offered in both places so both groups could find it. That matched how most sellers plan a community anyway, from the earlier interviews: one community, one purpose.

The tests and the data then said two things. Two entrances to one setting read as two different settings, while the linked product was synced between them; sellers saw two things that mysteriously agreed. And the access page itself did too much: sellers called it complex and overwhelming, and tracking showed almost nobody used the manual invite section at the bottom.

That version's flow: the access settings page, connecting ablefy products, picking the product, the chosen product with the sentence stating what happens after saving, the dialog about people who already bought, and the invite modal showing the same product's ruleView full size
Design file · the flow of that version in six steps: the access page, connect ablefy products, pick the product, the rule as a sentence, the people who already bought, and the invite modal showing the same rule
Community settings, Access settings tab: automatic access by free registration with approval or by connecting ablefy products, the current access settings as a sentence, and manual access control below with direct email invite and member removalView full size
Design file · the access settings page of that version: automatic rules, the current rules as a sentence, manual control below
Assistant

The assistant that made it worse

In between, a prototype let an assistant set access from a description of the community. For a setting this important, sellers wanted to click through it themselves. Reviewing a result they had not built confused them more. This was not a problem for AI to solve. It was a design problem.

The access page with an assistant panel that proposes the access rules from a chat descriptionView full size
Reconstructed from the design file · the prototype: an assistant proposes the access rules from a description
Shipped

Fewer things on each screen, one decision at a time

What shipped: the steps separated so one screen carries one decision, a clearer UI, and the unused manual invite gone. Soon after, more than one product could be linked. The invite page was redesigned on the same idea, and the two flows stopped syncing: access and invites are two use cases in two places, and the invite side takes several products.

That covers the three ways sellers use it. The community as the product, with one paywall. The community as a bonus to the seller's other products, through invites. And both, where existing buyers of a product join free and everyone else pays. Two more flows came with it: customers whose product access expired are marked and removed in one step, and synced buyers wait as pending until the seller sends the invitations, so access can be set up before the community is ready.

A dialog: remove 12 mismatched members? Members with expired or revoked access to the product on ablefy are marked with a mismatch badge and can be removed in bulkView full size
Design file · members whose product access expired are marked, and removed in one step
A dialog: bulk invite synced members? Members synced from ablefy products who have not been invited yet receive the invitation email now; members invited earlier get no duplicateView full size
Design file · synced buyers wait as pending until the seller sends the invitations
How we worked

Sellers in from the first month

Vision and the test plan in June 2025. In July an MVP, tested with five sellers before anything was built out. The version worth launching with was designed in three months, with its own design system, so engineers were never waiting on screens. From September, real sellers were in a closed beta.

I planned and ran the onboarding sessions and sat in 22 of them across four weeks, 21 November to 16 December 2025, each a recorded walkthrough of a seller setting up their own community. Engineers joined the sessions rather than reading a report. The backlog was reprioritised on what those sellers said, and a change made after one session could be watched working or failing in the next.

A beta onboarding session on a video call: a seller's first community, a test post with two comments, and me in the corner of the screenView full size
Onboarding a seller on the MVP · names covered
A follow-up interview: a seller's invite screen with the ablefy product sync, and me on the callView full size
Testing the access setting with a seller · names covered
Outcome

What it did, and what I would do differently

Open beta on 2 January 2026. The ablefy access connection merged in the last week of January, the week I handed the product over to take on customer insights. The product and its research kept going.

Voice of Customer, the work that followed

  • No friction found in later user tests or support cases; every follow-up interviewee satisfied with the result.
  • 68% of communities link at least one product. 36% of those set up a paywall, new revenue for ablefy.
  • 41% of invite-only communities saw the linked product's revenue rise, not all of it attributable to the community.

Find where sellers look first

Before deciding where a setting lives. A week of paper testing would have shown it, and saved a version.

One screen, one decision

The page that did too much lost sellers; the version that asks one thing at a time did not.

Some settings are made by hand

A decision about money and people is one sellers want to click through themselves. An assistant can draft a welcome post, not the access rules.
